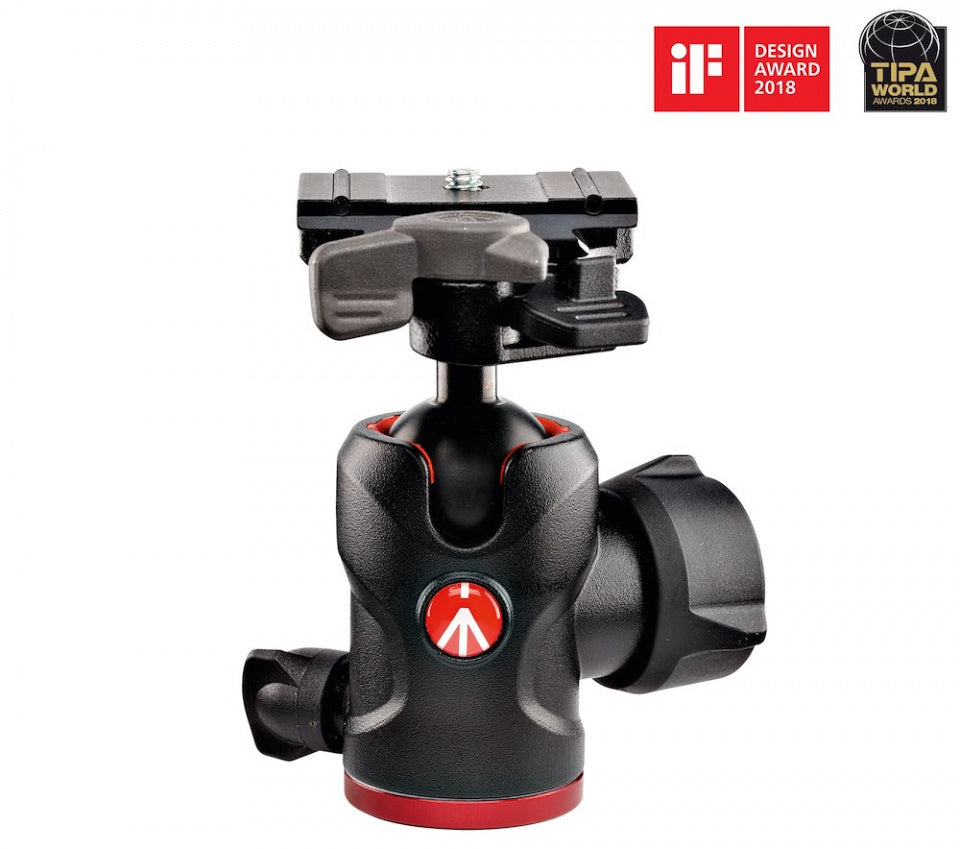

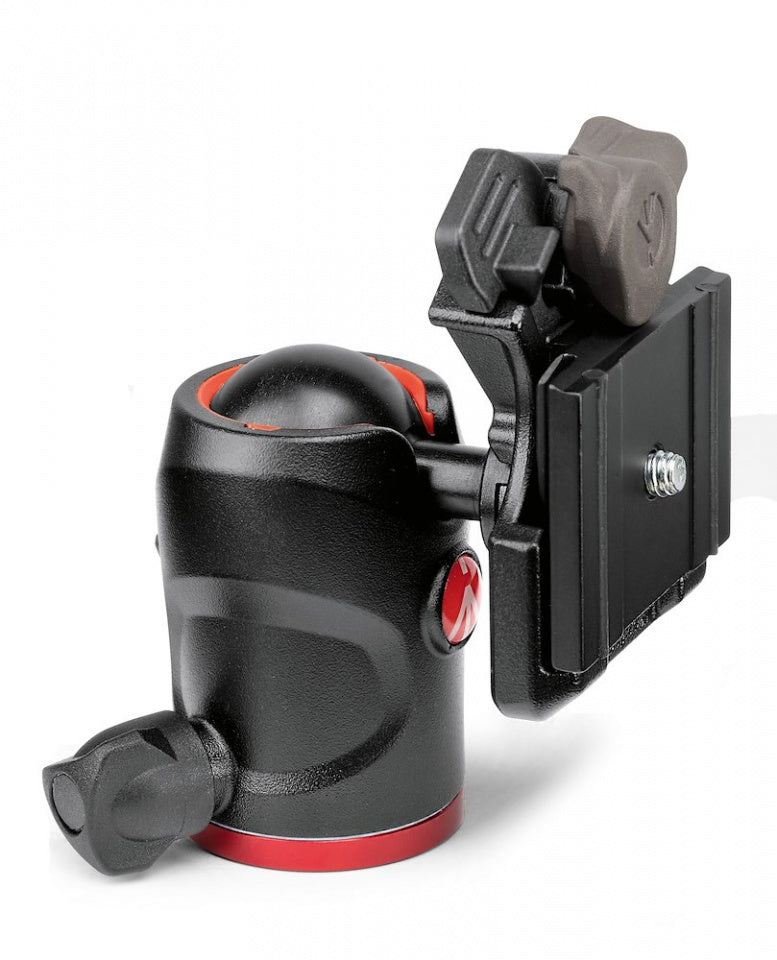

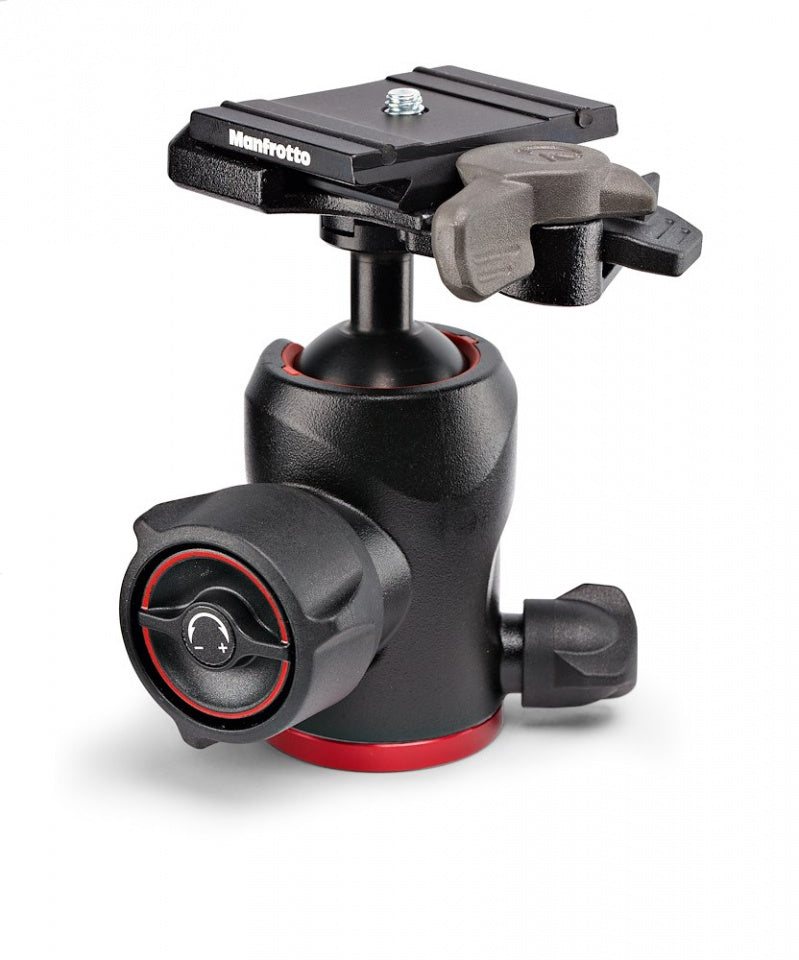

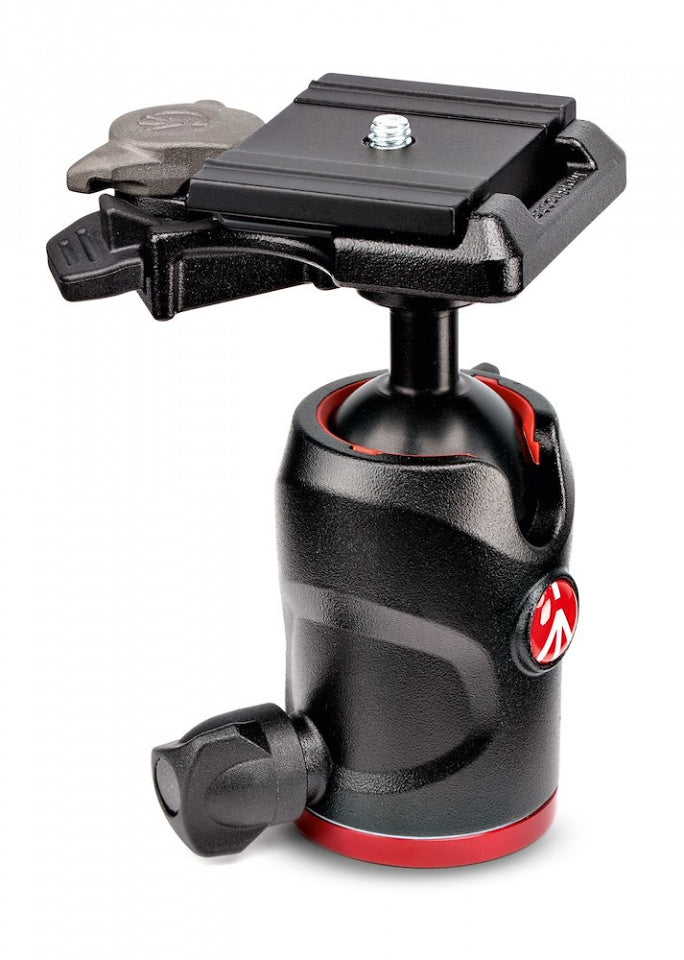

Manfrotto 494 Center Ball Head

For all amateurs photographers looking for a small yet powerful ball head, the 494 aluminium Center ball head enables fast and precise camera positioning.

Flawless smoothness for easy framing
Independent panoramic movement for easy landscape shots
Independent friction control to balance your equipment
200PL-PRO plate (RC2 & Arca-swiss compatible)
Unique premium design, strong and lightweight

Lightweight and compact, the 494 Center ball head is ideal for anyone looking for a quick and easy solution that helps frame shots precisely. This tripod head is made of highly-resistant, lightweight aluminium, so it is both extremely portable and strong enough to cope with a payload up to 8 kg. It is the perfect solution for all kinds of mirrorless cameras with zoom lenses and even medium-format DSLRs. This advanced ball head combines practicality with high functionality and features three independent controls: a main knob for managing the sphere lock, an integrated friction control knob that adjusts the ball tension so that equipment weight is always perfectly balanced and shots framed effortlessly; an independent panoramic knob that keeps the horizon flat and moves the camera horizontally, enabling astonishing landscape shots.

The 494 Center ball head mounts a unique plate that makes it fully compatible with the world’s most widespread standard camera plates: Manfrotto RC2 and Arca-swiss style. With this aluminium plate fixed to the camera, all Manfrotto heads and almost all tripod heads on the market featuring Arca-style attachments can be set up rapidly and effortlessly, with no need for disassembly components.

The 494 Center ball head’s design make it both extremely easy to set up and reliable to use in any configuration.

Specifications

Weight: 0.33 kg
Base Diameter: 40 mm
Material: Aluminium
Front Tilt: -90° / +40°
Safety Payload Uni/Pdr 105:2021: 9 kg
Safety Payload Weight: 8 kg
Plate Type: 200PL PRO
Colour: Black
Ball Locking: Yes
Top Attachment: 1/4? screw
Easy Link: No
Friction Control: Yes
Head Type: Ball Head
Independent Pan Lock: yes
Independent Tilt Lock: yes
Lateral Tilt: -90° / +40°
Maximum Working Temperature: 70 °C
Minimum Working Temperature: -30 °C
Pan Bar Included: No
Pan Drag: NONE
Panoramic Rotation: 360 °
Quick Release: Yes
Tilt Drag: NONE
Working Height: 10 cm
