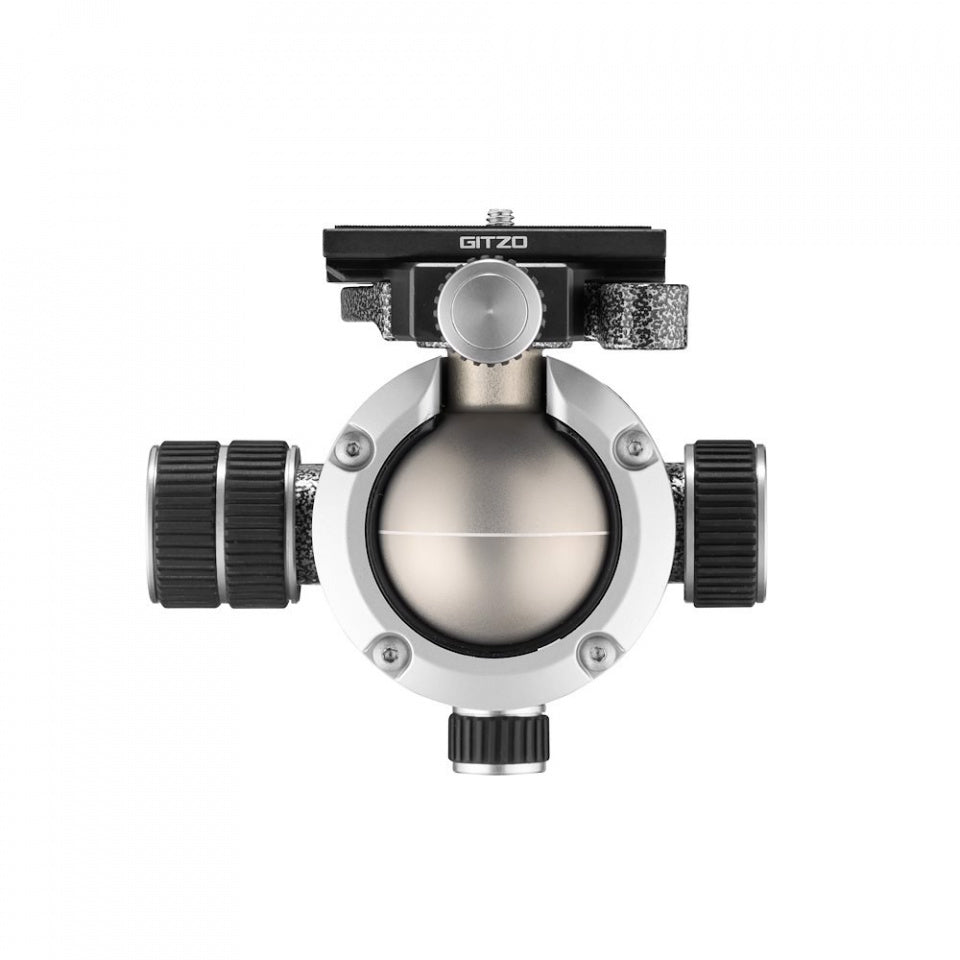

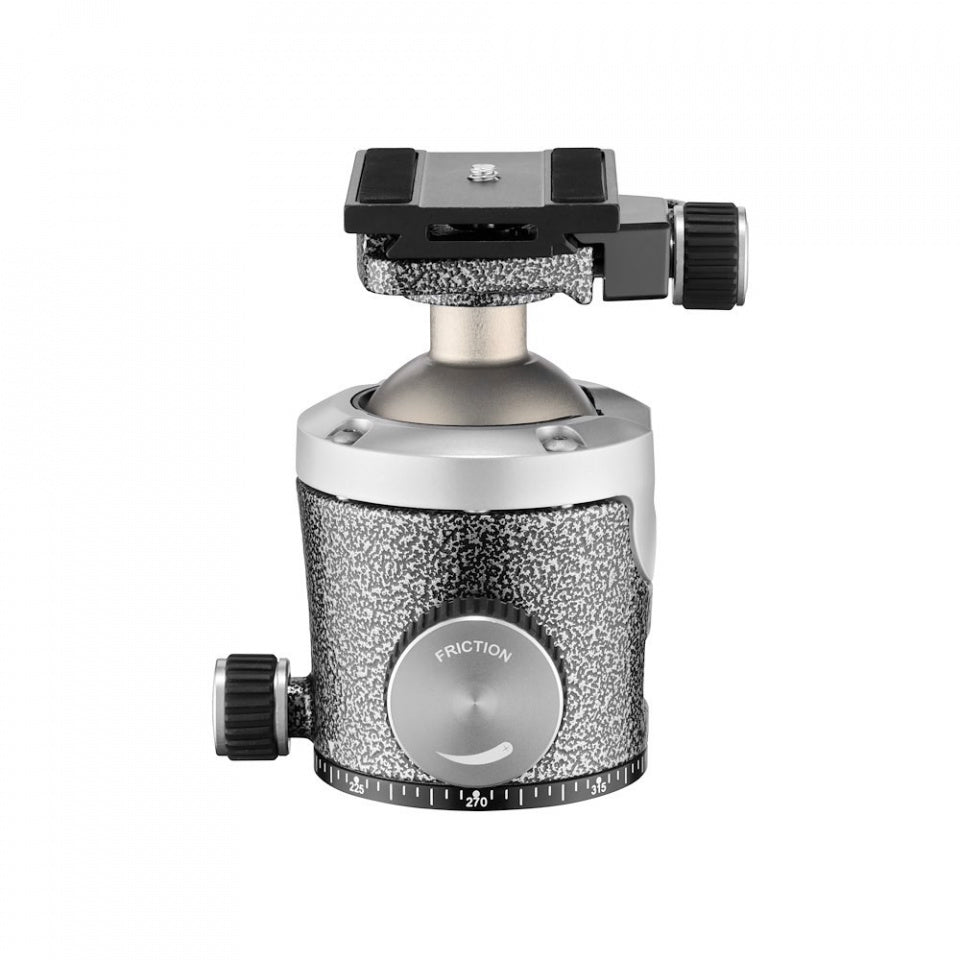

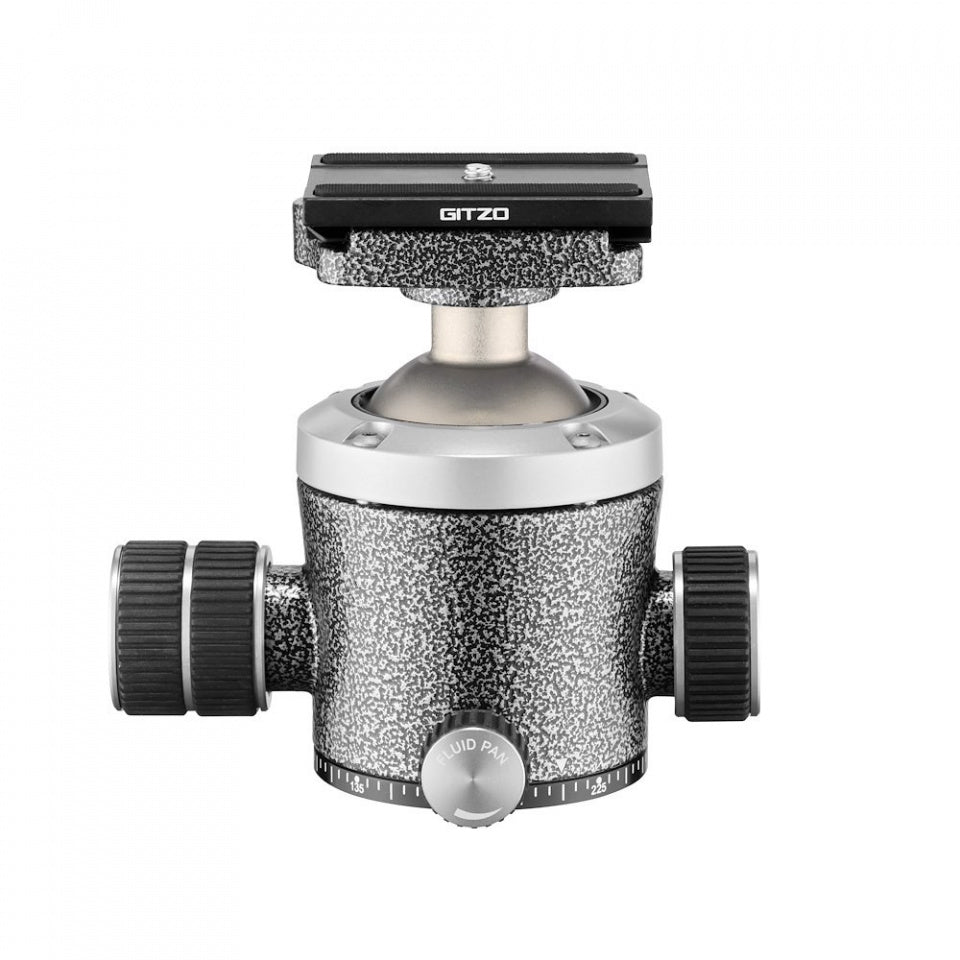

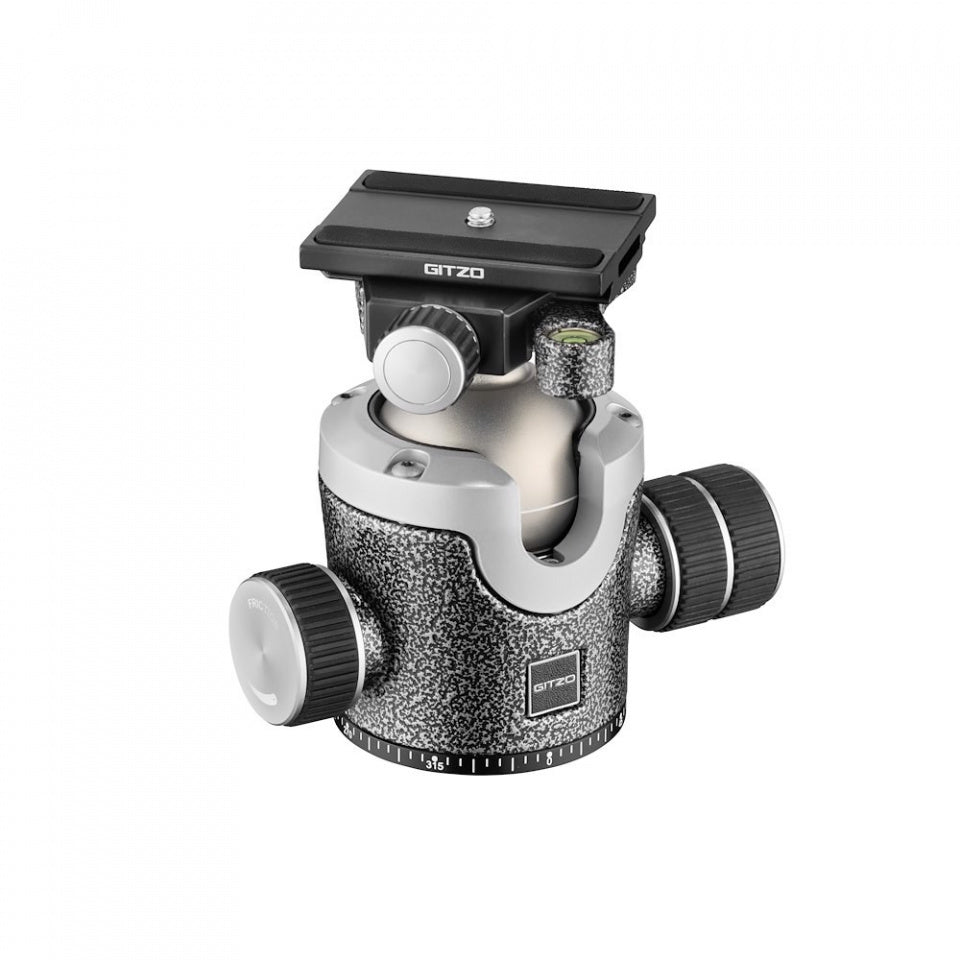

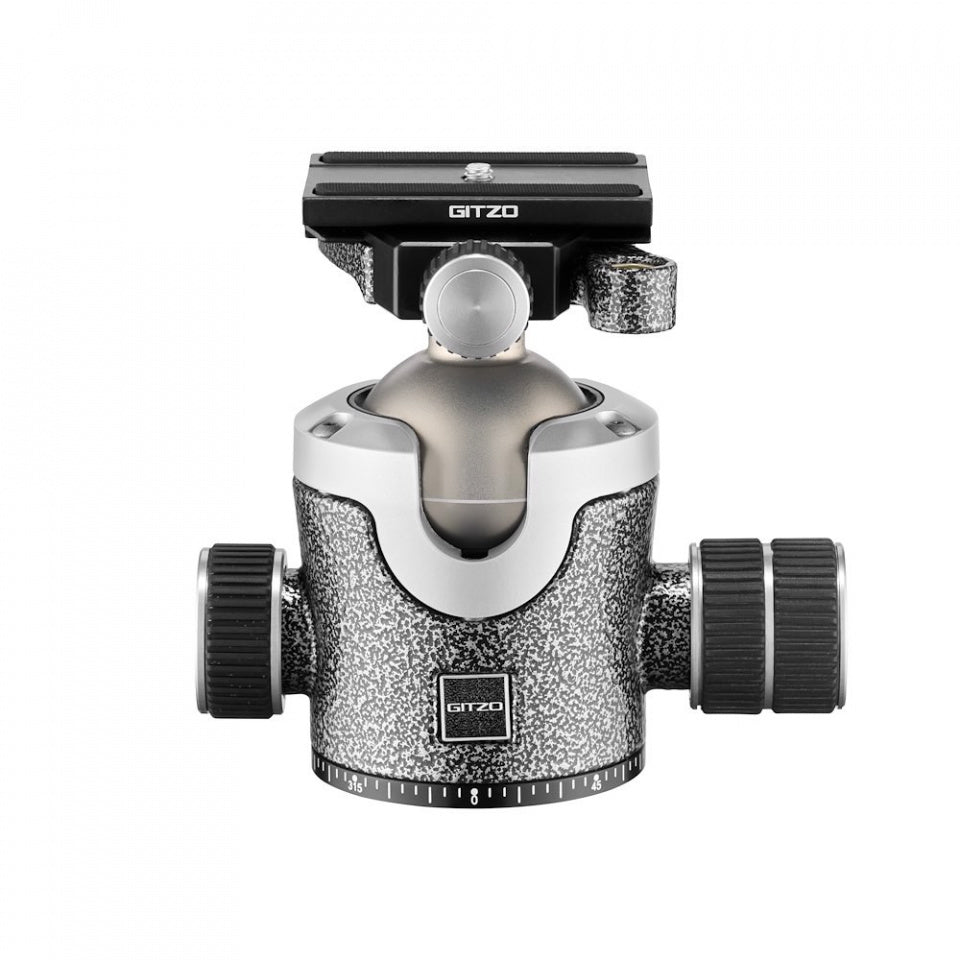

Gitzo Center Ball Head with Screw Series 4

The Gitzo Ball Head Series 4 GH4383QD (screw version) is a heavy-duty tripod head ideal for large telephoto lenses, engineered to ensure the ultimate in smoothness and precision of movement.

Though weighing-in at less than 1kg, it securely holds an impressive 30kg load – effortlessly handling a CSC or DSLR equipped with a 400-600mm lens. The unit perfectly complements Gitzo’s Series 3, 4 and 5 Systematic tripods and is available in both lever and screw plate lock configurations.

The Ball Head Series 4 has a larger super-smooth coated hollow-sphere ball ensuring confident and comfortable use with heavier equipment, even in extreme conditions and temperatures from -30° to 70°C.

It is rich in features: a friction control for precise adjustment and a bubble level to help keep a true horizon. A 360° independent panning lock provides uncompromisingly smooth movement in a fluid cartridge and a short-rotation fast lock assists in getting the perfect shot at a moment’s notice. The whole ensemble is precision manufactured using the highest-quality materials – including high-tolerance steel and aluminum components.

The Gitzo Ball Head Series 4 offers unrivaled load capacity, ultra-smooth movement and rapid friction control – all in a sub-1kg unit designed and precision-made in Italy. Supplied with a Gitzo D profile plate, the Ball Head Series 4 is also compatible with Arca-Swiss style plates from other brands.

Specifications:

Weight : 0.9 kg
Top Attachment : 1/4''
Safety Payload Weight : 30 kg
Base Type : 54 mm
Ball Locking : Yes
Base Diameter : 60 mm
Front Tilt : -90° / +40°
Material : Aluminium
Bubble Spirit Level (No.) : 1
Plate Type : GS5370DR
Colour : Noir Decor
Easy Link : No
Friction Control : Yes
Head Type : Ball Head
Independent Pan Lock : Yes
Independent Tilt Lock : Yes
Lateral Tilt : -90° / +40°
Maximum Working Temperature : 70 °C
Minimum Working Temperature : -30 °C
Pan Bar Included : No
Pan Drag : fluid cartridge with fixed drag
Panoramic Rotation : 360 °
Quick Release : No
Tilt Drag : NONE
Working Height : 12.5 cm
