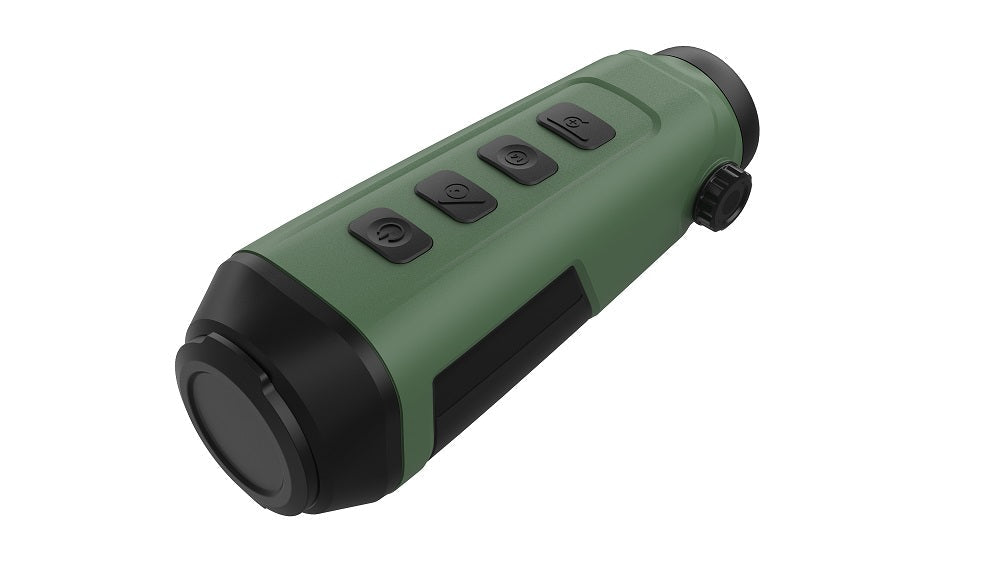

Konus Flame 0.6X - 2.4X Handheld Thermal Monocular 160X120

The Thermal Excellence

While being very compact and competitively priced, our #7953 model is among the most versatile of the market. It lets you choose between 4 different palettes, it comes with a photo/video recording function and it is also able to transfer the thermal images via Wi-Fi, so that you can see them live on your cellphone if you want. And, having a 0.6x-2.4x zoom system and a bigger display with enhanced field of view, this unit dramatically outperforms the competition from an optical standpoint as well.

Specifications

Handheld Thermal Monocular Camera
160x120 Pixels Resolution, High Sensivity Detector
Built-In Rechargeable Lithium Battery
Wi-Fi Hot Spot
Digital Zoom From 0.6X To 2.4X
8Gb Internal Memory
Waterproof Up To 3.3Ft Depth<
Photo And Video Recording Function

Technical Data

Detection Range (Standard Car Size): 559M – 1833.9FT
Detection Range (Average Human Size): 200M – 656.1FT
Recognition Range (Standard Car Size): 140M – 45 FT
Recognition Range (Average Human Size): 46M – 150.9FT
Identification Range (Standard Car Size): 70M – 229.6FT
Identification Range (Average Human Size): 23M – 75.4FT
Weight: 250G – 8.81OZ
Length: 158.3MM – 6.23″

Thermal Module

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
Max Resolution: 160X120
Pixel Interval: 17μm
Response Waveband: 8 μm To 14 μm
Netd: less than 35mk (@25°C), F#=1.0
Lens (Focal Length): 6.2mm
Field Of View: 14.7°x18.7° (Hxv)
Digital Zoom: from 0.6x to 2.4x
Aperture: F1.1
Magnification: 0.6x to 2.4x

Image Display

Monitor: 0.2 inch, LCOS, 720×540
FFC (Flat Field Correction): Auto, Manual, External Correction

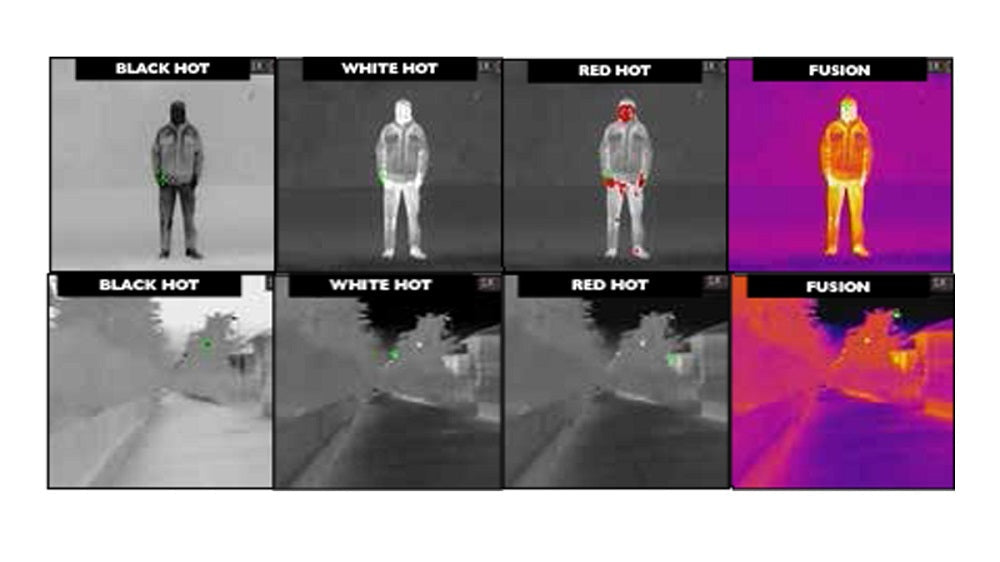

Palettes: Black Hot,White Hot, Red Hot, Fusion
Frame Frequency: 50Hz

Smart Function:

Highest Temperature Spot Tracking
Wi-Fi Hot Spot
Stand-By Mode

System:

Storage: Buit-In Memory Module (8Gb)
Record Video
Capture Snapshot

Power Supply:

Battery Type: Built-In 18650 Lithium Battery
Battery Operating Time: 10 Hrs. continuously running with CVBS and WI-FI hot spot off (@25°C), 7.5 hours continuous running with CVBS and Wi-Fi hot spot on (@25°C)
Battery Capacity Display

General:

Power: 5V DC/2A, 1.5W, Type-C interface
Working Temperature: -20°C to 55°C (-4°F to 131°F)
Protection Level: Submersible Waterproof Rating Ip-67
Dimension: 158.3mmx61mmx57mm (6.23″x2.40″x2.24″)
Weight: 250G (0.55lb)
