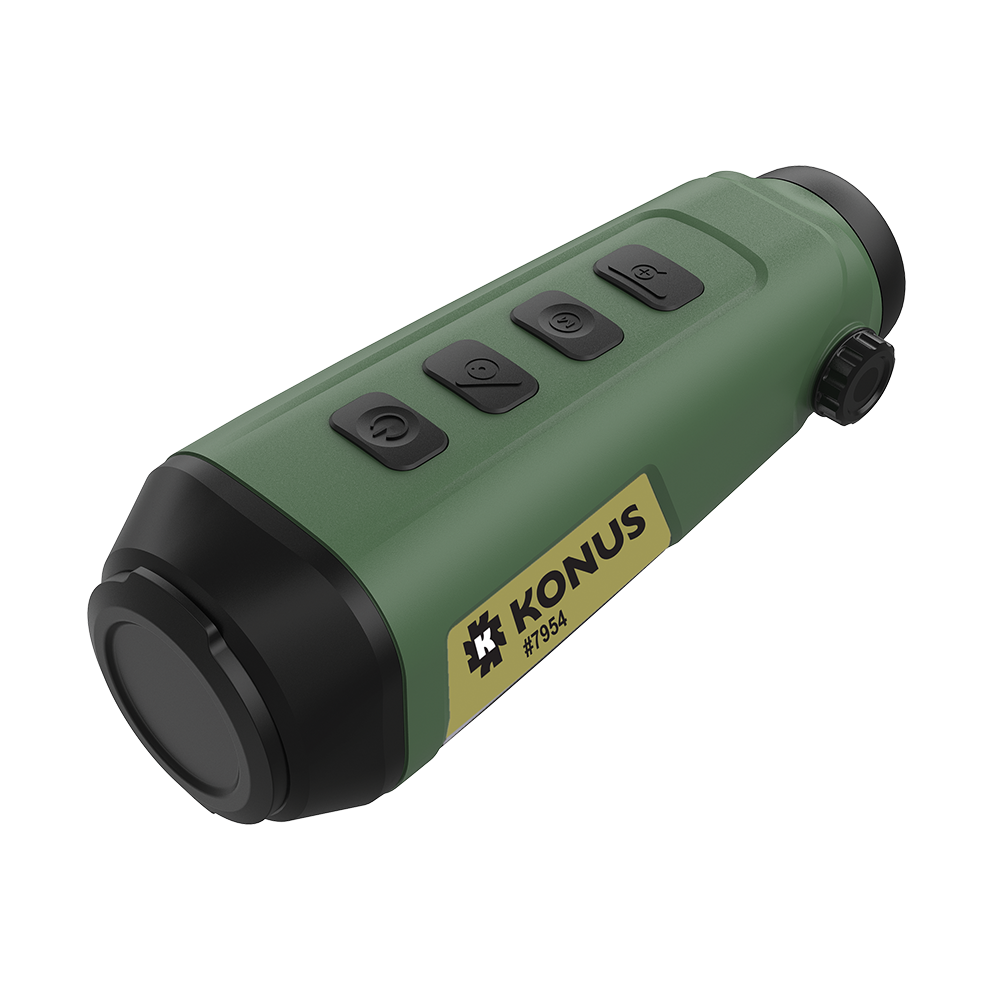

Konus Flame 1.5X - 3.0X Handheld Thermal Monocular 384X288

The Thermal Superiority

An ideal choice for professional users, our # 7954 model is engineered to maximize any on-field visual experience with a truly remarkable 384×288 resolution that goes way beyond the standards of the market.

It also features a very powerful 1.5x-3x zoom system and a generous 8GB internal memory that will accommodate all of your needs while taking pictures and recording videos.

Specifications

Handheld Thermal Monocular Camera
384x288 Pixels Resolution, High Sensitivity Detector
Built-In Rechargeable Lithium Battery
Wi-Fi Hot Spot
Digital Zoom From 1.5X To 3X
8GB Internal Memory
Waterproof Up To 3.3Ft Depth
Photo And Video Recording Function

Technical Data

Detection Range (Standard Car Size): 1353M – 1479.6YDS
Detection Range (Average Human Size): 400M – 437.44YDS
Recognition Range (Standard Car Size): 338M – 369.6YDS
Recognition Range (Average Human Size): 110M – 120.2YDS
Identification Range (Standard Car Size): 169M – 184.8YDS
Identification Range (Averge Human Size): 55M – 60.1YDS
Weight: 250G – 8.81OZ
Length: 158.3MM – 6.23″

Thermal Module

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
Max Resolution: 384X288
Pixel Interval: 17μm
Response Waveband: 8 μm To 14 μm
Netd: less than 35mk (@25°C), F#=1.0
Lens (Focal Length): 15mm
Field Of View: 24.55°x18.9° (Hxv)
Digital Zoom: from 1.4x to 3x
Aperture: F1.0
Magnification: 1.4x to 3x

Image Display

Monitor: 0.39 inch, OLED, 1024×768
FFC (Flat Field Correction): Auto, Manual, External Correction

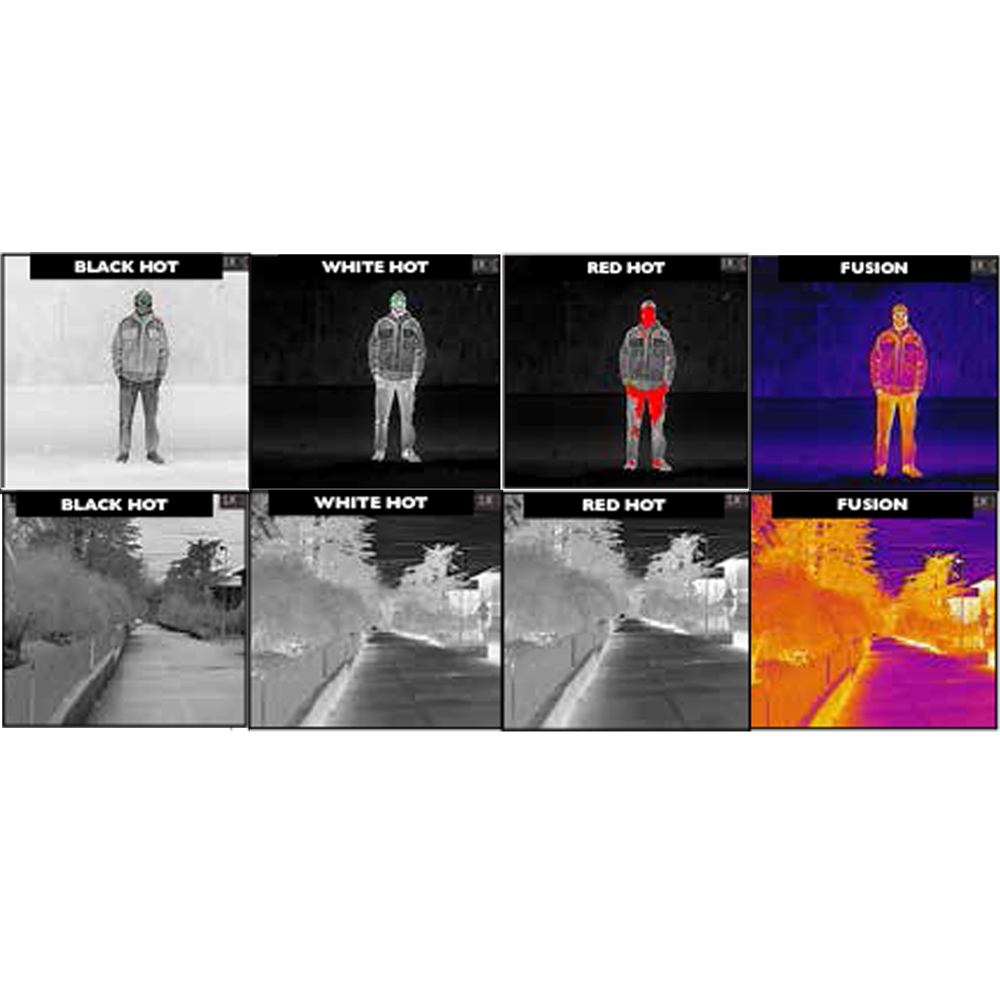

Palettes: Black Hot,White Hot, Red Hot, Fusion
Frame Frequency: 50Hz

Smart Function:

HOT TRACK
Wi-Fi
STAND-BY MODE

System:

Storage: Buit-In Memory Module (8GB)
On Board Video Recording
Capture Snapshot

Power Supply:

Battery Type: Built-In 18650 Lithium Battery
Battery Operating Time: Up to five hours continuously running (With Wi-Fi hot spot function off)
Battery Capacity Display

General:

Power: 5V DC/2A, 2W, Type-C interface
Working Temperature: -20°C to 55°C (-4°F to 131°F)
Protection Level: Submersible Waterproof Rating IP-67
Dimension: 158.3mmx61mmx57mm (6.23″x2.40″x2.24″)
Weight: 250G (0.55lb)
