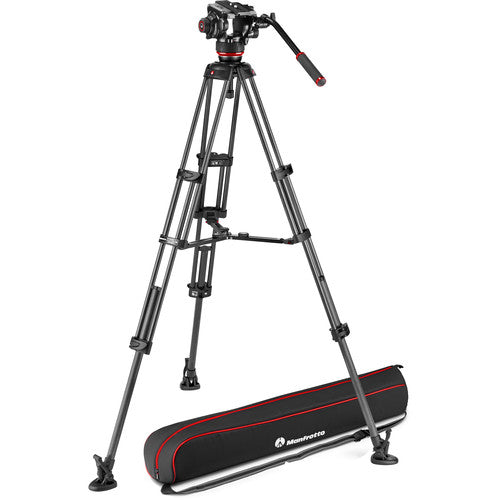

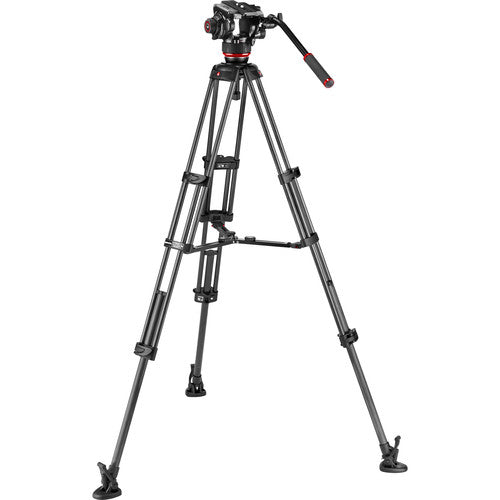

Manfrotto 504X Fluid Video Head with Carbon Twin Leg Tripod with Mid Spreader
This video system includes the Manfrotto 504X Fluid Video Head and the MVTTWINMC carbon fiber twin leg with middle spreader tripod.
Fluid video head with 4-step counterbalance system up to 6.5 kg
Maximum versatility thanks to flat base
Carbon Fiber twin leg tripod for greater rigidity
Side lock plate & two 3/8''easy link connectors for accessories Adjustable middle spreader for extra stability and versatility

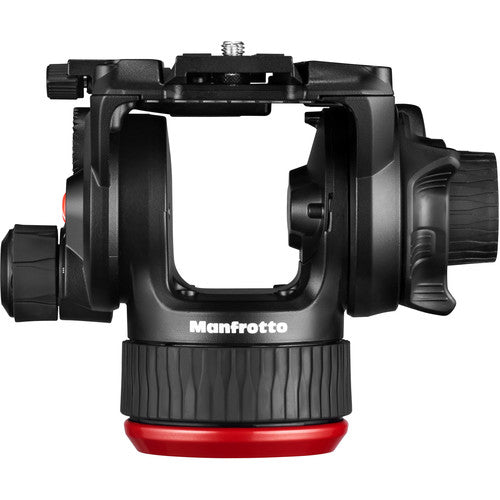

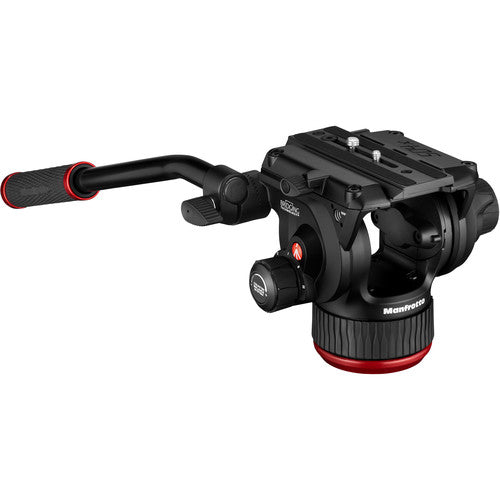

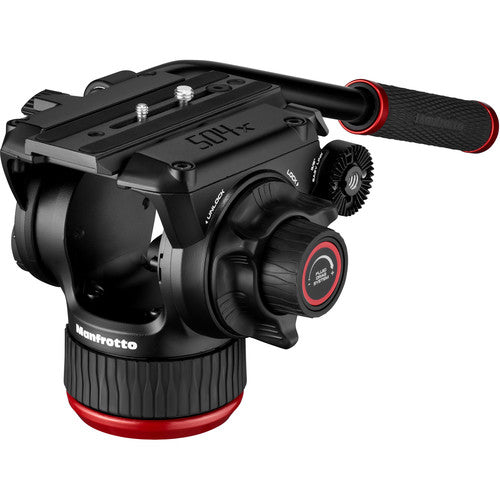

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.
The head is made from a brand-new catching aluminium design and has a maximum payload of 12 kg.
It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.
The head attaches to the tripod via a dedicated 75mm half ball.

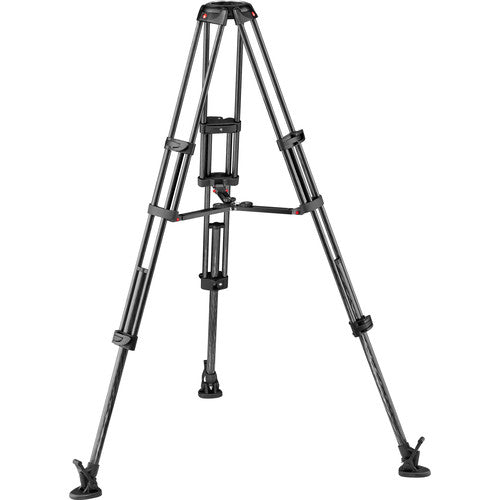

The MVTTWINMC carbon fiber twin leg with middle spreader video tripod is a professional-quality tripod with a two-stage, extremely rigid and stable design making it ideal for all kinds of assignments. If you want to create professional level video or films, then this is the must-have tripod. It features an aluminum casting 100mm bowl and it comes with an aluminum adapter that converts the bowl into a 75mm.
The tripod has ,mid-level spreader with telescopic arms, that helps you to set leg angles accurately. It is also detachable , allowing you to use the tripod in combination with the ground spreader Manfrotto 165MV, which is sold separately.
Leg locks are secure and reliable and twin spiked feet with rubber overshoes are provided for solid grounding.
For maximum versatility, the tripod can be used with various dollies (114MV and 181B).
With its combination of robust construction and compatibility options, this tripod definitely has it all.
Supplied with its own padded carrying bag.
Specifications
Weight: 5.3 kg
Safety Payload Uni/Pdr 105:2021: 12 kg
Counterbalance System: Variable Steps
Counterbalance Weight: 2.2, 4.4, 6.5 kg
Maximum Height: 169 cm
Min Height: 75 cm
Base Diameter: 75 mm
Bubble Spirit Level (No.): 1
Center Of Gravity: 55 mm
Carrying Bag Included: yes
Center Column: no centre column
Closed Length: 86 cm
Colour: Black
Top Attachment: 1/4? screw, 3/8? screw
Ball Flat: Flat
Safety Payload Weight: 12 kg
Powered By (Batteries): Lithium
Easy Link: Yes (with antirotation)
Front Tilt: -70° / +90°
Head Type: Video/Fluid Head
Leg Type: Twin
Leg Lock Type: Flip Lock
Leg Sections: 3
Material: Carbon Fiber
Maximum Working Temperature: 60 °C
Minimum Working Temperature: -30 °C
Pan Bar Included: Yes
Pan Drag: continuously adjustable from 0 to max level
