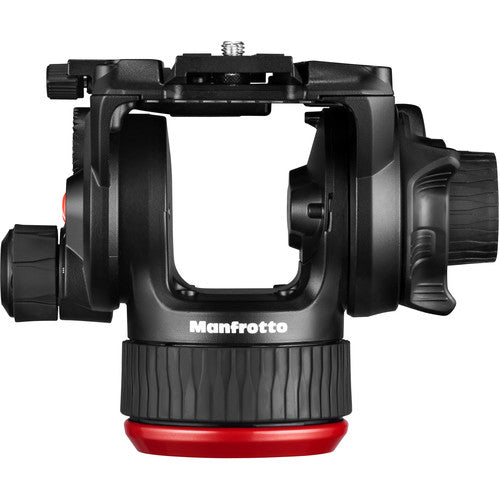

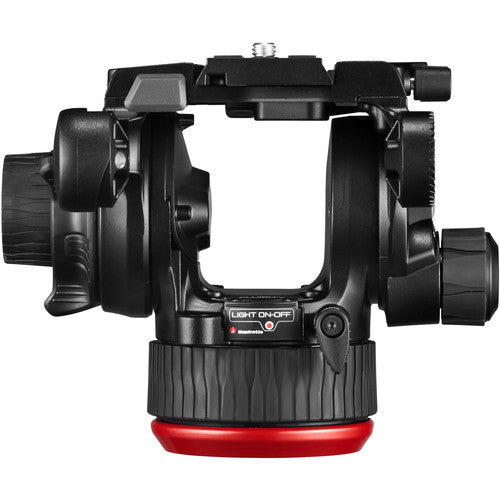

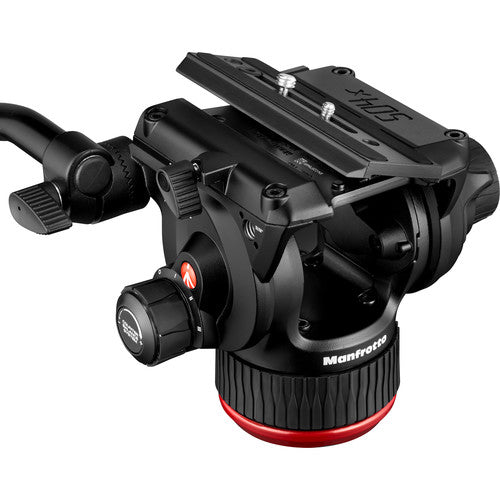

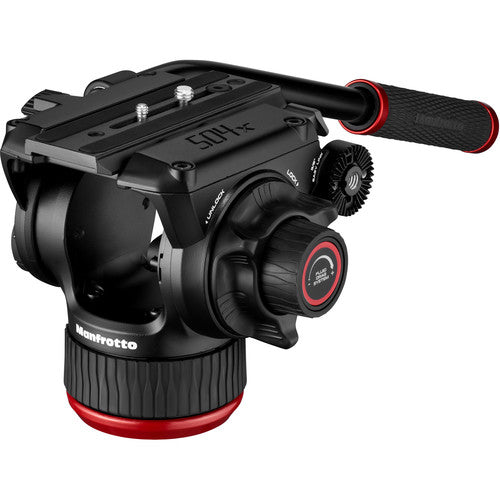

504X fluid video head is the evolution of the hugely successful 504HD.
Variable fluid Drag System on PAN & TILT, performed by new fluid
4 steps counterbalance system up to 6,5 kg
Flat base for shooting on sliders, jibs or other accessories
Sliding plate side lock attachment
Easy link connectors with Manfrotto anti rotation technology
It's a more compact and lighter version that finally comes with flat base (base diameter 75 mm), developed to meet the needs of the most demanding videographers.
The head is made from a brand-new catching aluminium design, and has a maximum payload of 12kg.
Utilising Manfrotto’s new fluid technology, the camera head allows you to capture judder-free smooth motion pans and tilts. It's never been easier for the operator to create premium-quality video capture, thanks to a 4-step counterbalance system which can carry payloads of up to 6.5 kg at 55mm C.0.G. That makes using a wide range of different cameras easier and more practical.
Two easy link 3/8'' thread connections allow an external monitor or other accessory equipment to be fitted on the head side. On the left side there is a cap cover on the 3/8” easy link connector to avoid cutting during usage.
Weight: 2 kg
Safety Payload Uni/Pdr 105:2021: 12 kg
Counterbalance System: Variable Steps
Counterbalance Weight: 2.2, 4.4, 6.5 kg
Base Diameter: 75 mm

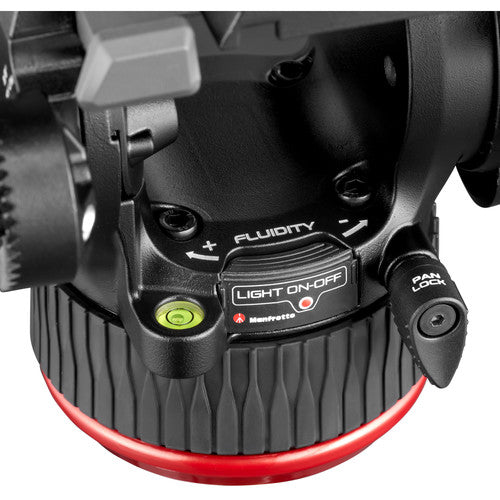

Bubble Spirit Level (No.): 1
Center Of Gravity: 55 mm
Safety Payload Weight: 12 kg
Powered By (Batteries): Lithium
Certifications: WEEE; RoHS
Top Attachment: 1/4? screw, 3/8? screw
Easy Link: Yes
Front Tilt: -70° / +90°
Ball Flat: Flat
Head Type: Video/Fluid Head
Maximum Working Temperature: 60 °C
Minimum Working Temperature: -30 °C
Pan Bar Included: Yes
Pan Drag: continuously adjustable from 0 to max level
Panoramic Rotation: 360 °
Plate Type: 504PLONGR-1
Quick Release: Yes
Tilt Drag: continuously adjustable from 0 to max level
Working Height: 14.9 cm
Accessory Compatibility: MVAPANBARM; MVAPANBARL
