Manfrotto 509 Video Head with 645 Fast Twin Carbon Tripod
The video system includes the Manfrotto 509 Professional Fluid Video Head and the 645 Fast Twin Tripod in carbon fibre.
Variable fluid drag and 4-step counterbalance system
Tripod with 100mm bowl and compatible with 75mm adapter
FAST Lever Lock & 3-angle selection mechanism for easy set up
Equipped with spiked feet with rubber overshoes for a firm grip
2 in 1 spreader for enhanced tripod stability
The 509HD fluid head combines ergonomic design features with professional performance. To help you obtain incredibly smooth camera movements and great footage, the 509HD has variable fluid drag and a fast, precise, 4-step counterbalance system that makes it suitable for a wide range of semi-professional and professional camera setups. The 509HD’s patented Advanced Balancing Recorder (ABR) allows you to quickly find, memorise and regain the correctly balanced plate position when using a particular combination of equipment. The 509HD also features Easy Link connectors for easy accessory attachment, an illuminated levelling bubble and replaceable rosettes for pan bar attachment on both sides of the head. The 509HD has a 100mm half ball video tripod mount.

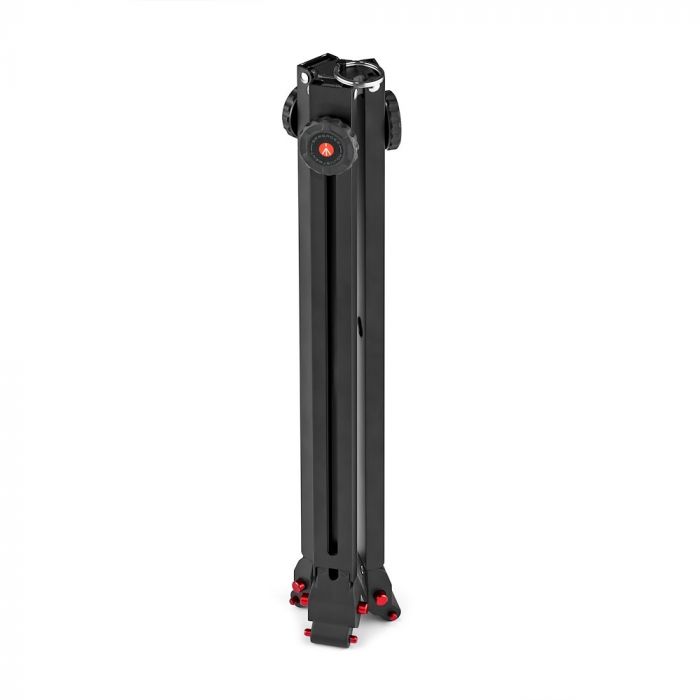

The 645 FTT Fast Twin Carbon Tripod features a double tubing and FAST Lever Lock technology for the most robust support ever. The tripod is provided with a 2 in 1 half ball: a standard 100mm bowl compatible with a 75mm adapter (available as accessory) to enable the use of a wider range of video heads. It also features a middle spreader lock. However, the 3-angle selectors make the use of a spreader a matter of optional preference.
This range was developed with the primary objective of making video shooting easier by reducing set up times and maintenance. The synchronized closure mechanisms between the upper and lower locks, enable videographers to control the entire leg with a single lock and get to work in record time. The new tripod provides maximum versatility, supporting the use of a broad choice of heads, and ensuring the utmost rigidity while also being extremely lightweight.

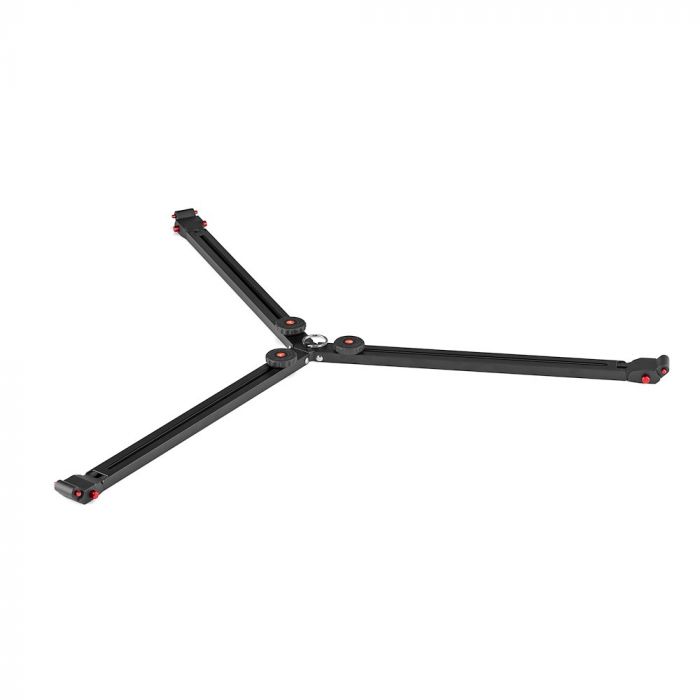

Moreover, it comes with the 2 in 1 ground and middle telescopic spreader and it features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most diverse shooting locations.
Specifications
Weight: 7.5 kg
Safety Payload Uni/Pdr 105:2021: 13.5 kg
Counterbalance Weight: 8.5 kg
Maximum Height: 173 cm
Min Height: 43.5 cm
Bubble Spirit Level (No.): 1
Center Of Gravity: 125 mm
Carrying Bag Included: MB MBAG100PN
Center Column: no centre column
Certifications: WEEE; RoHS
Closed Length: 89.5 cm
Colour: Black
Top Attachment: 1/4? screw, 3/8? screw
Ball Flat: 100 Ball
Safety Payload Weight: 13.5 kg
Powered By (Batteries): Lithium
Easy Link: Yes
Front Tilt: -60° / +90°
Head Type: Video/Fluid Head
Leg Type: Twin
Leg Angles: 20°, 50°, 70°
Leg Lock Type: Flip Lock
Leg Sections: 3
Material: Aluminium
Maximum Working Temperature: 60 °C
Minimum Working Temperature: -20 °C
Pan Bar Included: Yes
Pan Drag: continuously adjustable from 0 to max level
Panoramic Rotation: 360 °
Plate Type: 509PLONG
Quick Release: Yes
Spreader: Low & Mid level - Variable arm leg
Tilt Drag: continuously adjustable from 0 to max level
Accessory Compatibility: 502HLV; 509HLV; 114MV; 181B; 565
