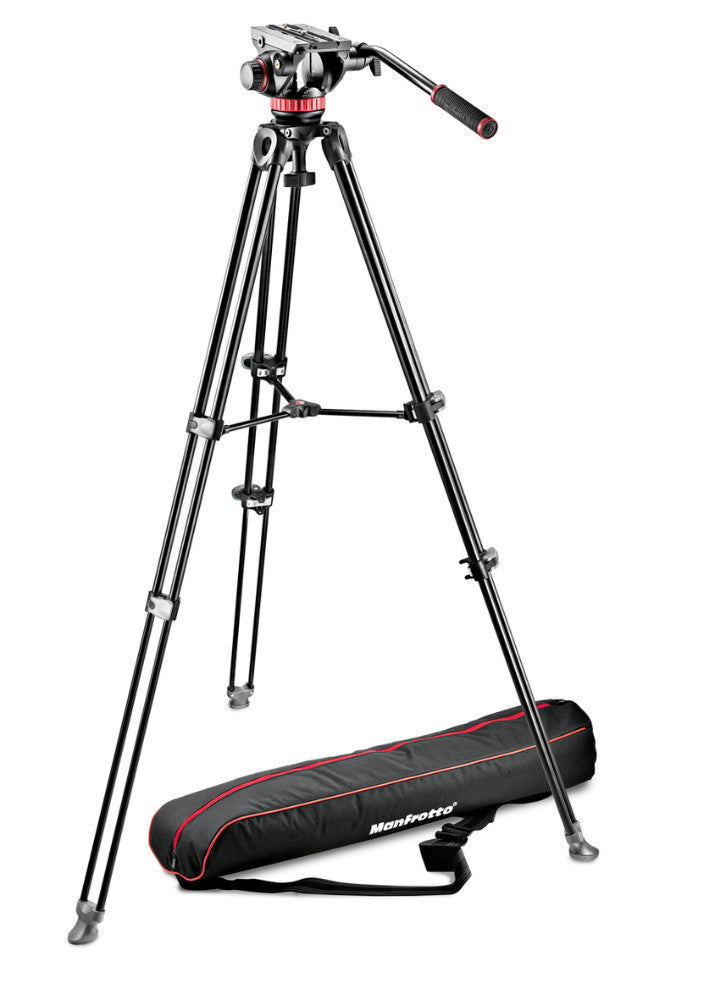

Manfrotto MVH502A Head with MVT502Am Aluminium Tripod
The MVK502AM-1 Manfrotto video system features the 502 fluid video head with incorporated 75mm half ball, the MVT502AM professional aluminium twin leg tripod with middle spreader, and padded carry bag.
Variable Fluid Drag System on PAN and TILT movements
4kg pre-set counterbalance system on tilt movement
Sliding plate for the fastest camera connection
Levelling bubble makes setup simple
Aluminium telescopic twin leg tripod keeps your system firm
The head features a variable fluid drag system in both pan and tilt movements and fixed counterbalance system of 4kg and can support up to 7kg. Easy link connectors gives you the freedom to connect gear like an external monitor in a jiffy.
The Manfrotto MVT502AM is a lightweight video tripod that features telescopic twin-leg structure made of elliptical aluminium tubes that help reduce torsion and it includes a fixed mid-level spreader for increased rigidity and faster set-up. The 2-stage/3-section MVT502AM has a 75mm bowl that perfectly fit the head.
Specifications
Weight: 3.86 kg
Counterbalance System: Fixed
Counterbalance Weight: 4 kg
Maximum Height: 156 cm
Min Height: 70.5 cm
Bubble Spirit Level (No.): 1
Center Of Gravity: 55 mm
Carrying Bag Included: 110125
Center Column: no centre column
Closed Length: 75 cm
Colour: Black
Top Attachment: 1/4? screw, 3/8? screw
Ball Flat: 75 Ball
Safety Payload Weight: 7 kg
Powered By (Batteries): 0
Easy Link: Yes
Front Tilt: -80° / +90°
Head Type: Video/Fluid Head
Leg Type: Twin
Leg Lock Type: Flip Lock
Leg Sections: 3
Legs Tube Diameter: 15.2, 18.3, 21.7 mm
Material: Aluminium
Maximum Working Temperature: 60 °C
Minimum Working Temperature: -20 °C
Pan Bar Included: Yes
Pan Drag: continuously adjustable from 0 to max level
Panoramic Rotation: 360 °
Plate Type: 504PLONG
Quick Release: Yes
Spreader: mid level - fixed arm length
Tilt Drag: continuously adjustable from 0 to max level
Accessory Compatibility: MVAPANBARM; MVAPANBARL; 502HLV;509HLV
