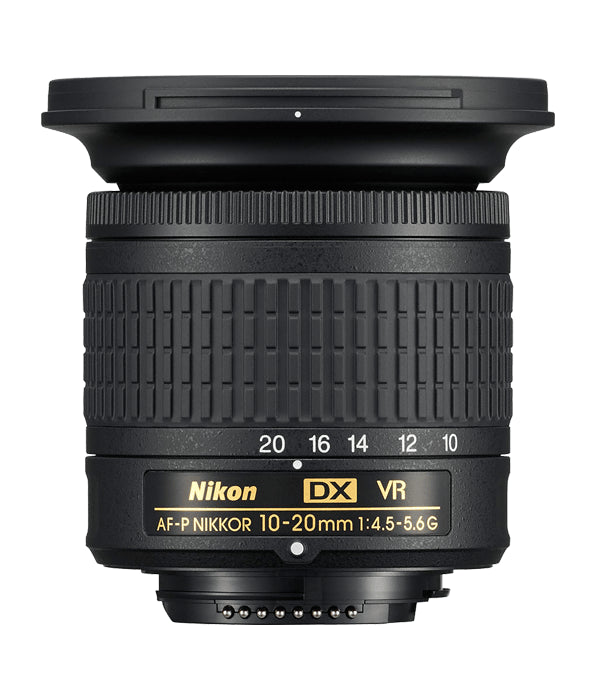

Nikon Nikkor AF-P DX 10-20mm F4.5-5.6G VR Lens
There’s so much more to see.
To truly capture the feeling of a place, you need a lens wide enough to see the entire scene. Enter the AF-P DX NIKKOR 10-20mm f/4.5-5.6G VR—an ultra-wide-angle zoom lens that's ideal for sprawling landscapes and cityscapes, architecture, interiors or just beautiful group photos. Its near-silent autofocusing and Vibration Reduction (VR) image stabilization make it a great choice for recording video, and its compact, lightweight design makes it a great travel companion. See what you've been missing with the AF-P DX NIKKOR 10-20mm f/4.5-5.6G VR.
Small in size, big in quality
Despite its super compact, lightweight design, the AF-P DX NIKKOR 10-20mm f/4.5-5.6G VR delivers huge performance. Vibration Reduction (VR) image stabilization ensures sharper handheld photos and videos and lets you use a slower shutter speed for brighter photos in low light. Three Aspherical (AS) Lens Elements nearly eliminates naturally occurring distortion and contributes to the lens' lightweight, compact design. Super Integrated Coating (SIC) cuts through ghosting and lens flare in backlit or cross-lit situations; retains maximum color and contrast. A 7-blade aperture design gives your photo and video backgrounds a beautifully soft, round blurring effect.
Life from a new perspectiveUltra-wide-angle views and close focusing |
|
Do not disturb
|
Technology
A-M A-M stands for Auto-Manual Mode. Thanks to a mechanism incorporated in the lens barrel, smooth focusing operation in Manual focus mode is realized in the same way as users have become accustomed to with conventional manual-focus lenses by adding an appropriate torque to the focus ring. |
Aspherical Lens A lens with a curved, non-spherical surface. Used to reduce aberrations and enable a more compact lens size. Aspherical lenses minimize coma and other types of lens aberrations, even when used at the widest aperture. They are particularly useful in correcting distortion in wide-angle lenses and help contribute to a lighter, more compact design by reducing the number of standard (spherical) elements necessary. Aspherical lens elements correct these distortions by continuously changing the refractive index from the center of the lens. |
IF Lens A NIKKOR lens in which only the internal lens group shifts during focusing. Thus, IF NIKKORS do not change in size during AF operation, allowing for compact, lightweight lenses capable of closer focusing distances. These lenses will be designated with the abbreviation IF on the lens barrel. |
M/A Select NIKKOR lenses have a focusing mode which allows switching from automatic to manual focusing with virtually no lag time by simply turning the focusing ring on the lens. This makes it possible to seamlessly switch to fine manual focusing while looking through the viewfinder. |
Pulse Motor Nikon's "P" series of NIKKOR lenses use a pulse motor (utilizing stepping motors) to focus smoother and quieter than previous drive systems. This quiet drive system makes the lenses ideal for use when shooting video |
Super Integrated Coating Nikon Super Integrated Coating is Nikon's term for its multilayer coating of the optical elements in NIKKOR lenses. |
Vibration Reduction
A Nikon in-lens technology that improves image stability by automatically compensating for camera shake. Lenses that offer VR will feature the abbreviation VR on the lens barrel.
Specifications
Mount Type: Nikon F-Bayonet
Focal Length Range: 10 - 20mm
Zoom Ratio: 2x
Maximum Aperture: f/ 4.5-5.6
Minimum Aperture: f/ 29
Format: DX
Maximum Angle of View (DX-format): 109°
Minimum Angle of View (DX-format): 70°
Maximum Reproduction Ratio: 0.17x
Lens Elements: 14
Lens Groups: 11
Optical Conversion Factor: 1.5x
Compatible Format(s): DX
VR (Vibration Reduction) Image Stabilization: Yes, Lens shift using voice coil motors (VCMs)
Diaphragm Blades: 7
Aspherical Elements: 3
Super Integrated Coating: Yes
Autofocus: Yes
AF-P (Pulse Motor): Yes
Internal Focusing: Yes
Minimum Focus Distance: 0..22m, from focal plane at all zoom positions
Focus Mode: Auto, Manual, Manual/Auto
G-type: Yes
Filter Size: 72mm
Accepts Filter Type: Screw-on
Approx. Dimensions (Diameter x Length): 77 mm x 73 mm, Distance from camera lens mount flange, based on CIPA Guidelines
Approx. Weight: 230 g, based on CIPA Guidelines
The number of cameras compatible with AF-P NIKKOR lenses is limited. Even for compatible cameras, firmware update may be required*. Fully compatible models: D850, D500, D7500, D5600, D5500, D5300*, D3500, D3400, D3300* and later models
Compatible models with limited functions: D5, D810 series, Df, D750, D7200, D7100, D5200, Nikon 1 series with the FT-1
Incompatible models: D4 series, D3 series, D2 series, D1 series, D800 series, D700, D610, D600, D300 series, D200, D100, D7000, D5100, D5000, D90, D80, D70 series, D3200, D3100, D3000, D60, D50, D40 series, film cameras
